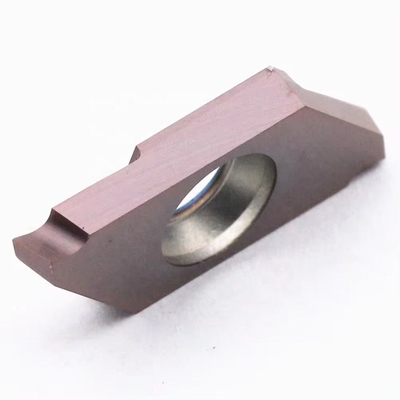

TKF12 Carbide Cutting Off Inserts for Small Diameter Steel Parts CNC Lathe Grooving and Cutting
TKF12 Application Field
The TKF12 is a widely used type of CNC carbide insert designed for parting-off and external grooving of small diameter steel parts. It is primarily employed for grooving and cutting-off operations on lathes and CNC machines, available in various shapes and cutting angles.
Carbide inserts are replaceable, indexable tools made from cemented carbide, suitable for machining steels, cast iron, high-temperature alloys, and nonferrous materials. They facilitate faster machining and result in superior finishes on metal components.
Production Standard
This series of inserts primarily conforms to the standards of Kyocera’s TKF12 series. Size specifications can be customized according to individual customer requirements.
The TKF12 series is a reputable line of carbide grooving inserts from Kyocera. Our Drow standard production sizes and stock specifications are aligned with this established series.
For specific details, please refer to the section below.
Product Details: TKF12
-
Material Quality: Crafted from 100% original carbide powder, ensuring outstanding wear resistance and durability.
-
Dimensions:
- Cutting Width (CW): 0.25–2.0 mm
- Cut Diameter (CUTDIA): 5–12 mm
- Radial Edge (RE): 0–0.08 mm
- Positive Side Relief (PSIRR): 0–20°
-
Coating Technology: Advanced coatings are tailored to meet your specific application needs, providing excellent corrosion and wear resistance.
-
Fine Grinding Process: The insert surface is finely ground for high smoothness and superior cutting edge quality, effectively minimizing cutting resistance and friction loss.
-
Perfect Fit: Accurately designed edge strips help reduce the likelihood of micro-vibration during machining.
-
Applicable Materials:
- Uncoated Inserts: Ideal for aluminum, non-ferrous metals, and non-metallic materials.
- Coated Inserts: Suitable for carbon steel, alloy steel, mold steel, hardened steel, and ductile iron.
-
Customization: If our standard stock does not meet your specific demands, please attach CAD or 3D drawings for inquiries.
-
Production Quality: All inserts are manufactured using high-end EU processing equipment. For further information, please refer to the “Entire Production Quick View” section.
Product Features:
1.Chamfering and tip-arc processing of the insert cutting edge, which can well protect the insert edge from fracture and lead to smooth workpiece surface.
2.Switzerland 5 axis machine processing R Angle, and passivation treatment, high precision without burr.
3. High performance composite coating support which can offer you super hard and smooth surface.
4. Professional and efficiency chip-breaker design, provides perfect cutting performance.
5. Precise dimension, high accuracy. Perfectly fit to tool holders so that not easy to produce micro-vibration during processing.
6.The base material imported from Europe has better oxidation resistance and wear resistance.
7. Customized insert design.Different dimensions,coating, chip-breaker, and material grade are available.
Carbide inserts produced by We Drow realize efficiency machining and long tool life, which are popular and well-feedback all over the world.
Product Specification:
| Part Number |
W1 |
S |
D1 |
| TKF12_ |
3 |
8.7 |
5 |
| Part Number |
Dimensions(mm) |
|
| CW |
CUTDIA |
RE |
PSIRR |
| TKF12 R/L |
050-S-16DR |
0.5 |
5 |
0.03 |
16° |
| 070-S-16DR |
0.7 |
8 |
16° |
| 100-S-16DR |
1.0 |
12 |
16° |
| 125-S-16DR |
1.25 |
16° |
| 150-S-16DR |
1.5 |
16° |
| 200-S-16DR |
2.0 |
16° |
| 100-T-16DR |
1.0 |
12 |
0.08 |
16° |
| 150-T-16DR |
1.5 |
16° |
| 200-T-16DR |
2.0 |
16° |
| 050-NB-20DR |
0.5 |
5 |
0 |
20° |
| 070-NB-20DR |
0.7 |
8 |
20° |
| 100-NB-20DR |
1.0 |
12 |
20° |
| 150-NB-20DR |
1.5 |
20° |
| 200-NB-20DR |
2.0 |
20° |
| TKF12 R/L Plain End |
050-S |
0.5 |
5 |
0.03 |
0° |
| 070-S |
0.7 |
8 |
| 100-S |
1.0 |
12 |
| 125-S |
1.25 |
| 150-S |
1.5 |
| 200-S |
2.0 |
| 100-T |
1.0 |
12 |
0.08 |
| 150-T |
1.5 |
| 200-T |
2.0 |
| 050-NB |
0.5 |
5 |
0 |
| 070-NB |
0.7 |
8 |
| 100-NB |
1.0 |
12 |
| 150-NB |
1.5 |
| 200-NB |
2.0 |
| Attention:The above are our standard production size and standard stock specifications, the size details can be processed separately according to customer requirements, and refer to the standard: Kyocera's TKF12 series, etc. |
Entire Production Quick View:
1.Use 100% original carbide powder to sinter to get the integral insert blank.
2.Flat grinding machining.
3.Surrounding grinding machining.
4.Create insert cutting edge.
5.Chamfering and tip-arc processing of the insert cutting edge.
6.Composite Coating.
Quality Inspection:
Why choose us:
1.Technical innovation: Complex surfaces and functional structures can be quickly formed and kept accurate.
2.Processing speed: Short production cycle, fast delivery time, to ensure delivery on time according to the delivery date.
3.Product quality: High quality guaranteed.High precision, up to 0.005-0.001mm.
4.Confidentiality system: Triple confidentiality measures to protect, proofing more assured.
5.Fully equipped: Excellent processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
6.Cost-effective: Reasonable design and material selection lead us to a competitive price, so that could help provide you more favorable price of the same level products .
FAQ
Q1: Are insert samples available ?
A: We provide free sample,the exneeds to be paid by the buyer
Q2: Can we get a discount if our ordered quantity is big enough ?
A: Yes.We can offer you our best price and will give you a discount if your ordered quantity is big enough.
Q3: How can we trust your product quality?
A: 100% products quality inspection for first batch, and casual inspection for the coming batch.Raw material will be tested before bulk production and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping
Q4: What's your delivery way?
A: According to the requirements of customers,we will provide the best transportation service
