Customizable Size And Shape Options Available For NTK CSVC Series Cut Off Inserts To Meet Your Specific Requirements

CSVC Application Field

The CSVC is a widely utilized type of CNC carbide insert designed for external grooving and parting-off operations. It is primarily employed for grooving and cutting tasks on lathes and CNC machines, available in various shapes and cutting angles.

When selecting a cut-off insert, several important parameters should be considered. Careful attention to insert geometry, grade, shape (nose angle), size, nose radius, and entering (lead) angle is crucial for achieving effective chip control and optimal machining performance.

Production Standard

This series of inserts mainly conforms to NTK’s CSVC series standards. Size specifications can be customized according to individual customer requirements.

The CSVC series is a sub-line of the well-regarded CSV series of carbide grooving inserts from NTK. Our Drow standard production sizes and stock specifications are aligned with this reputable series.

For specific details, please refer to the section below.

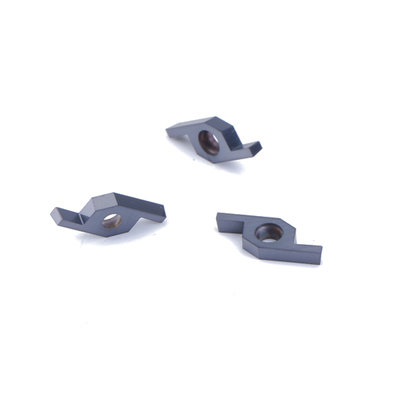

Product Details: CSVC

• Material Quality: Constructed from 100% original carbide powder, ensuring exceptional wear resistance and toughness.

• Dimensions:

  • Width (W): 3.0–5.0 mm
  • Maximum Cutting Diameter: 0.6–1.5 mm
  • Nose Radius (rε): 0.0 mm

• Coating Technology: Advanced coatings can be tailored to your specific application, providing superior corrosion and wear resistance.

• Fine Grinding Process: The surface of the insert is finely ground for high smoothness and exceptional cutting edge quality, effectively minimizing friction and loss.

• Perfect Fit: Designed with precise and smooth edge strips to reduce the likelihood of micro-vibration during machining.

• Applicable Materials:

  • Uncoated Inserts: Suitable for aluminum, non-ferrous metals, and non-metallic materials.
  • Coated Inserts: Ideal for carbon steel, alloy steel, mold steel, hardened steel, and ductile iron.

• Customization: If our standard stock does not meet your specific needs, please attach CAD or 3D drawings for inquiries.

• Production Quality: All inserts are manufactured using high-end EU processing equipment. For additional information, please refer to the “Entire Production Quick View” section.

Product Features

1. Edge Protection: Chamfering and tip-arc processing of the insert cutting edge effectively safeguard against fractures and ensure a smooth surface finish on workpieces.

2. Precision Machining: Utilizing Swiss 5-axis machines for R angle processing and passivation treatment, achieving high precision without burrs.

3. Superior Coating: Enhanced by a high-performance composite coating that provides an exceptionally hard and smooth surface.

4. Efficient Chip-Breaker Design: Our professional chip-breaker design ensures optimal cutting performance and efficiency.

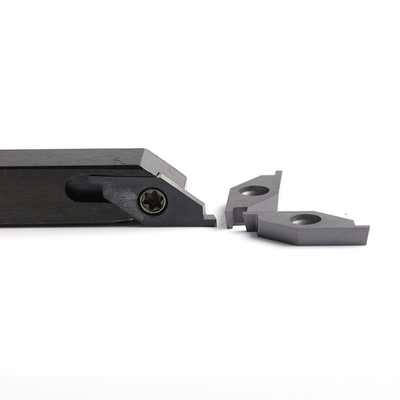

5. Accurate Dimensions: Engineered for high precision, these inserts fit seamlessly into tool holders, minimizing the risk of micro-vibration during machining.

6. Quality Materials: The base material, sourced from Europe, offers superior oxidation and wear resistance.

7. Customizable Options: We offer various insert designs, including different dimensions, coatings, chip-breakers, and material grades to meet your specific requirements.

Carbide inserts produced by We Drow enable efficient machining and extended tool life, receiving positive feedback worldwide.

Product Specification:

Entire Production Quick View:

1.Use 100% original carbide powder to sinter to get the integral insert blank.

2.Flat grinding machining.

3.Surrounding grinding machining.

4.Create insert cutting edge.

5.Chamfering and tip-arc processing of the insert cutting edge.

6.Composite Coating.

Quality Inspection:

Why Choose Us

1. Technical Innovation: We excel in rapidly forming complex surfaces and functional structures while maintaining accuracy.

2. Processing Speed: Our short production cycles ensure fast delivery, meeting your deadlines consistently.

3. Product Quality: We guarantee high standards, with precision levels reaching up to 0.005-0.001 mm.

4. Confidentiality Assurance: Our triple-layer confidentiality measures protect your information, ensuring secure proofing.

5. Comprehensive Facilities: Equipped with advanced machinery and multiple production lines, we have the capacity to meet diverse processing needs.

6. Cost-Effectiveness: Strategic design and material selection allow us to offer competitive pricing, helping you obtain high-quality products at favorable rates.

FAQ

Q1: If we want to collaborate with you, can we ensure confidentiality?
A: Absolutely! All your information, including company details, drawings, and purchase orders, will be kept confidential. We can sign a Non-Disclosure Agreement (NDA) if you prefer.

Q2: What are your payment terms?
A: We require a 30% deposit via T/T, with the remaining 70% due before delivery. We will provide photos of the products and packaging prior to the final payment.

Q3: Do you offer OEM and ODM services?
A: Yes, we do! With over 10 years of experience in OEM services, our dedicated R&D team is committed to designing products that meet diverse customer needs, offering professional advice and solutions.

Q4: Do you accept low-volume sample orders? What is your MOQ for special tools?
A: Yes, we accept sample orders with a minimum quantity of just one piece, and the lead time for samples is 2-3 days. MOQs for special requirements can be negotiated.
